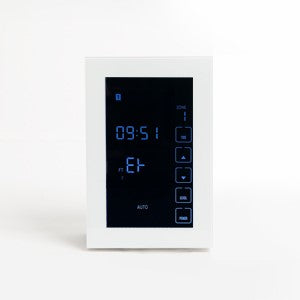

TEMPCO TX16 VWX DUAL FLOOR HEATING THERMOSTAT -black background

VERTICAL WHITE DUAL - Black background (ADD 2ND APPLIANCE eg. heated towel rail) Touch Screen THERMOSTAT

Dual-Function Thermostat and Timer (Model: TX16)

Programming Features

• Flexible programming options: 7-day, 5/2-day programmable, or non-programmable settings (selected during installation).

• Customize up to 4 time periods and temperature settings daily, or use the convenient pre-set schedule.

• Designed to enhance energy efficiency, achieving savings of up to 33%.

• Add and program a 2nd applicated e.g. heated towel rail

Display Features

• Vertical interface

• Generously sized touchscreen display (95x55mm) for enhanced visibility.

• Compatible with European-standard installation boxes.

• Black backlit display ensures clear viewing in low-light conditions.

• Large, easy-to-read characters and oversized touch keys for simplified operation.

• Streamlined interface offers easy navigation with minimal clutter.

Comfort & Convenience

• User-friendly setup, programming, and operation with audio feedback for touchscreen confirmations.

• Retains program settings even during power outages.

• Adjustable temperature limits to prevent overheating.

• Enhanced touchscreen security to prevent unauthorized changes.

• Room temperature calibration range: +/- 4°C.

• High-capacity switch capable of handling up to 16 amps (230V).

• Temperature display accuracy: 0.5°C resolution.

Versatile Temperature Control Modes

• Combines three operational models for flexible use:

• A (Air): Monitors and controls air temperature using the built-in sensor.

• F (Floor): Focuses solely on regulating floor temperature.

• AF (Air & Floor): Balances air temperature control with floor temperature limitation.

• Includes a built-in temperature sensor and a 3-meter floor sensor (extendable as needed).

Specifications

• Power Supply: 230VAC (optional 120VAC).

• Inputs: Dual NTC10K temperature sensors.

• Outputs: One 16A relay and one 2A relay.

• Operating Range: Ambient temperature from 0°C to +45°C; Relative Humidity (RH) 0–95% (non-condensing).

• Dimensions: 121mm x 80mm x 18mm.

• Backlight Lifespan: 5,000 hours.

• Battery Type: CR 1220 (for clock backup only).

• Battery Life: Estimated between 5 to 10 years.

• Warranty: 24 months from date of purchase

Dual-Function Thermostat and Timer (Model: TX16)

Programming Features

• Flexible programming options: 7-day, 5/2-day programmable, or non-programmable settings (selected during installation).

• Customize up to 4 time periods and temperature settings daily, or use the convenient pre-set schedule.

• Designed to enhance energy efficiency, achieving savings of up to 33%.

• Add and program a 2nd applicated e.g. heated towel rail

Display Features

• Vertical interface

• Generously sized touchscreen display (95x55mm) for enhanced visibility.

• Compatible with European-standard installation boxes.

• Black backlit display ensures clear viewing in low-light conditions.

• Large, easy-to-read characters and oversized touch keys for simplified operation.

• Streamlined interface offers easy navigation with minimal clutter.

Comfort & Convenience

• User-friendly setup, programming, and operation with audio feedback for touchscreen confirmations.

• Retains program settings even during power outages.

• Adjustable temperature limits to prevent overheating.

• Enhanced touchscreen security to prevent unauthorized changes.

• Room temperature calibration range: +/- 4°C.

• High-capacity switch capable of handling up to 16 amps (230V).

• Temperature display accuracy: 0.5°C resolution.

Versatile Temperature Control Modes

• Combines three operational models for flexible use:

• A (Air): Monitors and controls air temperature using the built-in sensor.

• F (Floor): Focuses solely on regulating floor temperature.

• AF (Air & Floor): Balances air temperature control with floor temperature limitation.

• Includes a built-in temperature sensor and a 3-meter floor sensor (extendable as needed).

Specifications

• Power Supply: 230VAC (optional 120VAC).

• Inputs: Dual NTC10K temperature sensors.

• Outputs: One 16A relay and one 2A relay.

• Operating Range: Ambient temperature from 0°C to +45°C; Relative Humidity (RH) 0–95% (non-condensing).

• Dimensions: 121mm x 80mm x 18mm.

• Backlight Lifespan: 5,000 hours.

• Battery Type: CR 1220 (for clock backup only).

• Battery Life: Estimated between 5 to 10 years.

• Warranty: 24 months from date of purchase
